Lab 1-1

📝 Summary

In this lab, we analyze Lab01-01.exe and Lab01-01.dll using static analysis techniques.
Our goal is to identify suspicious characteristics, determine the purpose of the files, and extract any host-based or network-based indicators.
We use tools such as PE Studio, PEiD, PEview, Strings, Dependency Walker, Detect It Easy, and VirusTotal.

📍 Question 1: VirusTotal Detections

Do either files match any existing antivirus signatures?

🟩 Lab01-01.exe

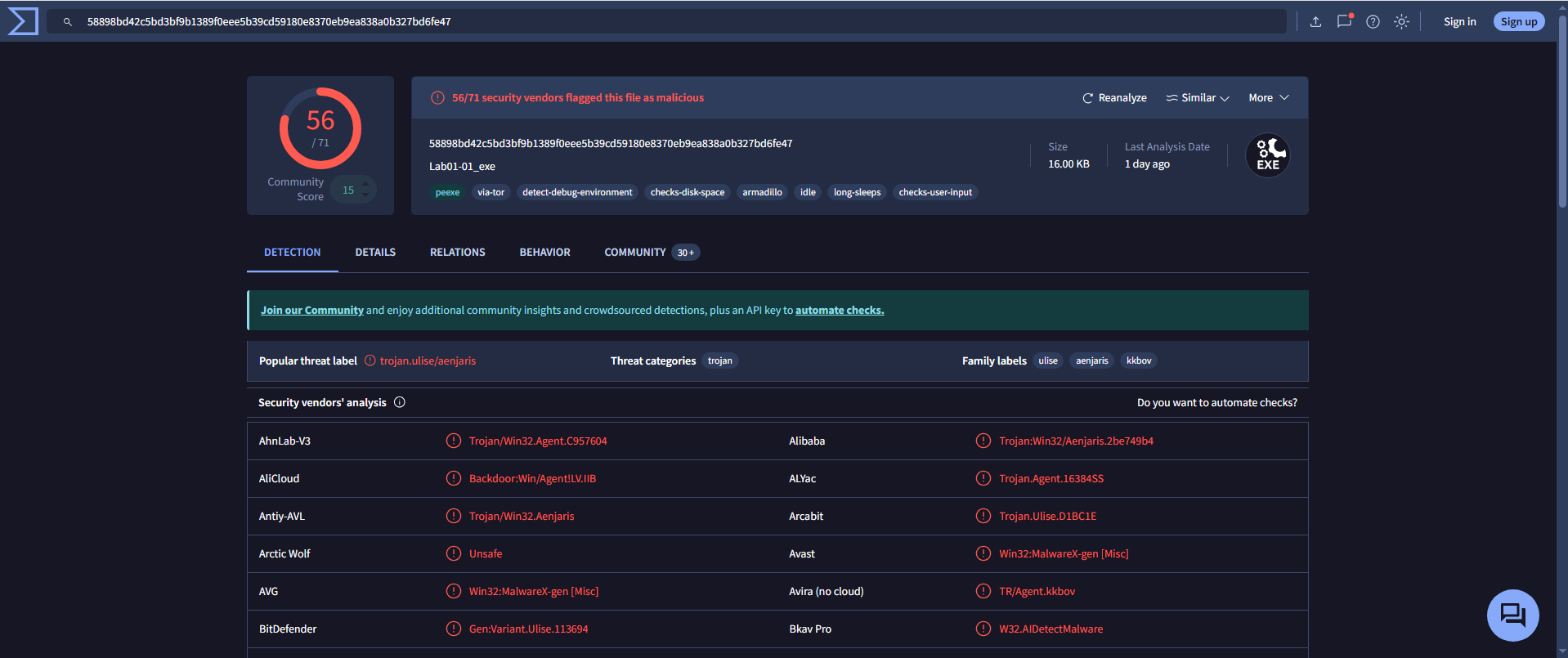

Lab01-01.exe

  • Detection Ratio: 56 / 71
  • Common AV Detections:
    • CrowdStrike Falcon: Win/malicious_confidence_100%
    • AVG: Win32:MalwareX-gen

🟨 Lab01-01.dll

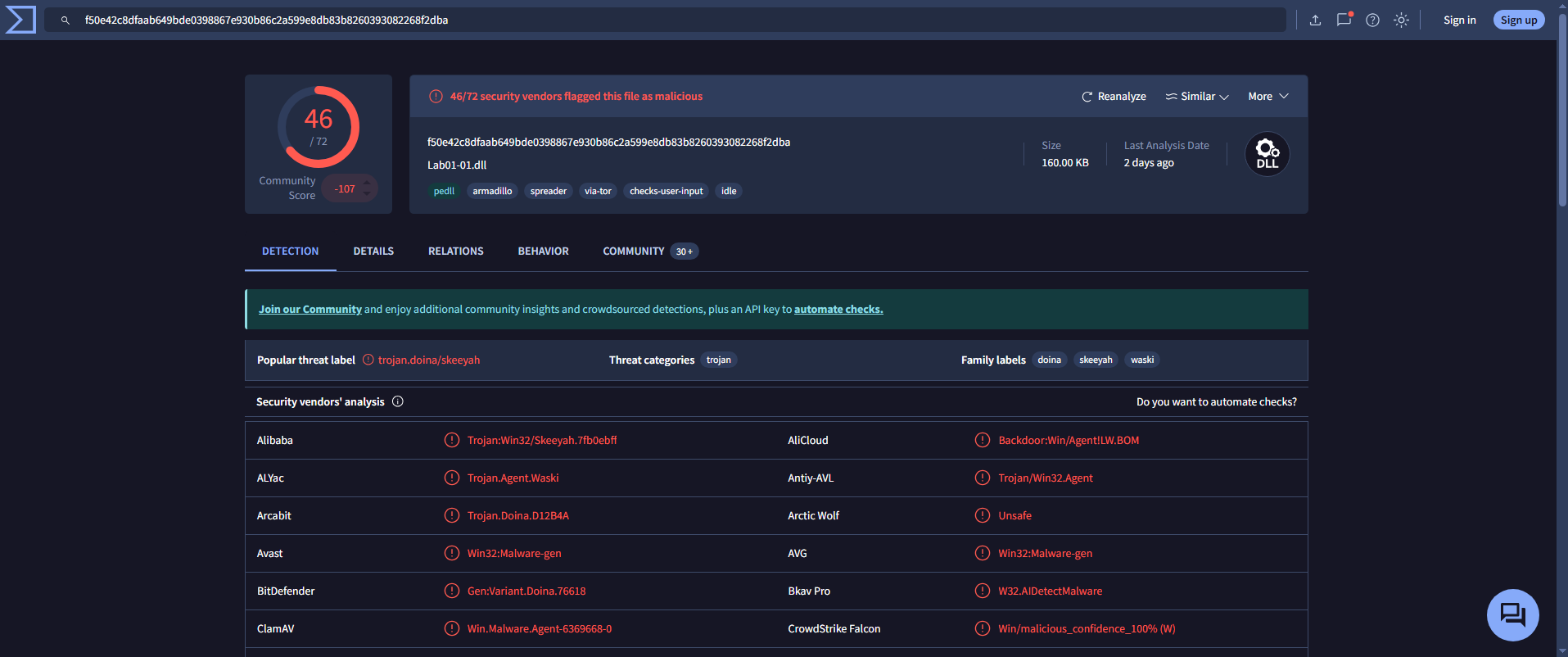

Lab01-01.dll

  • Detection Ratio: 46 / 72
  • Common AV Detections:
    • AVG: Win32:Malware-gen
    • Bitdefender: Gen:Variant.Doina.76618

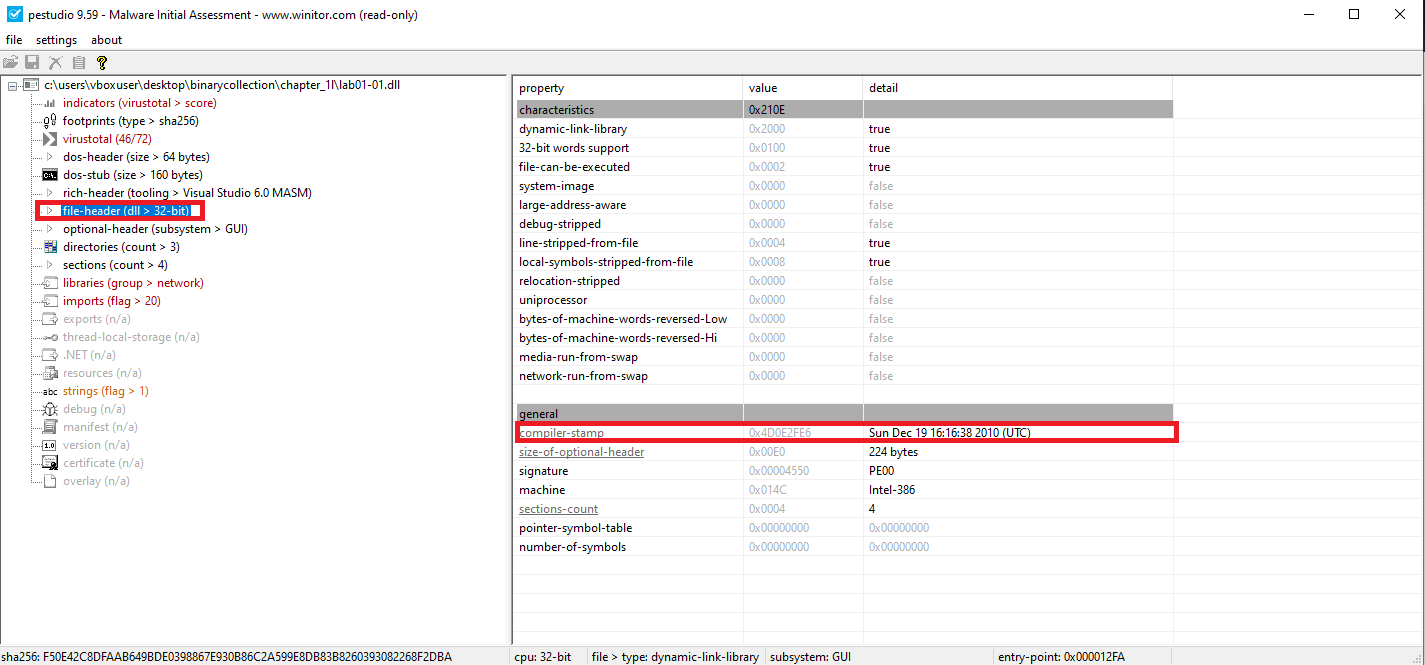

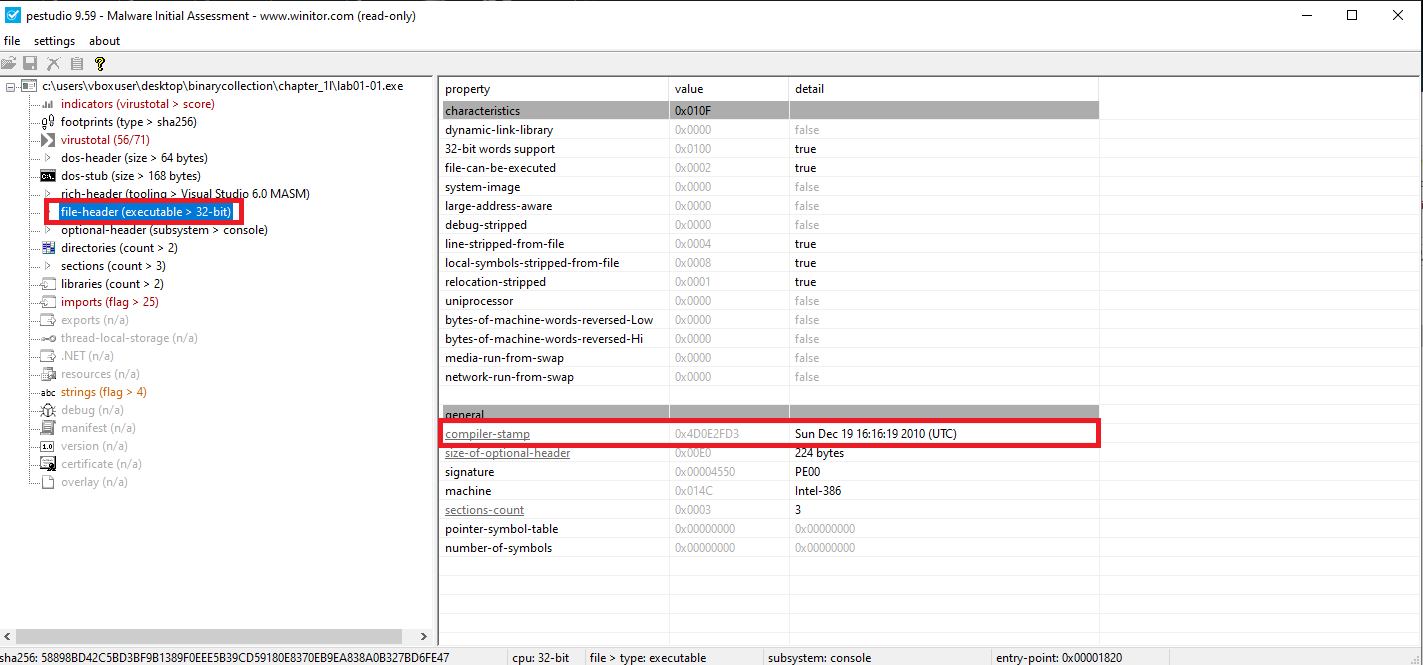

📍 Question 2: Compilation Timestamps

When were these files compiled?

FileCompilation Time (UTC)
Lab01-01.exeSun Dec 19 16:16:19 2010
Lab01-01.dllSun Dec 19 16:16:38 2010

Lab01-01.exe Lab01-01.dll

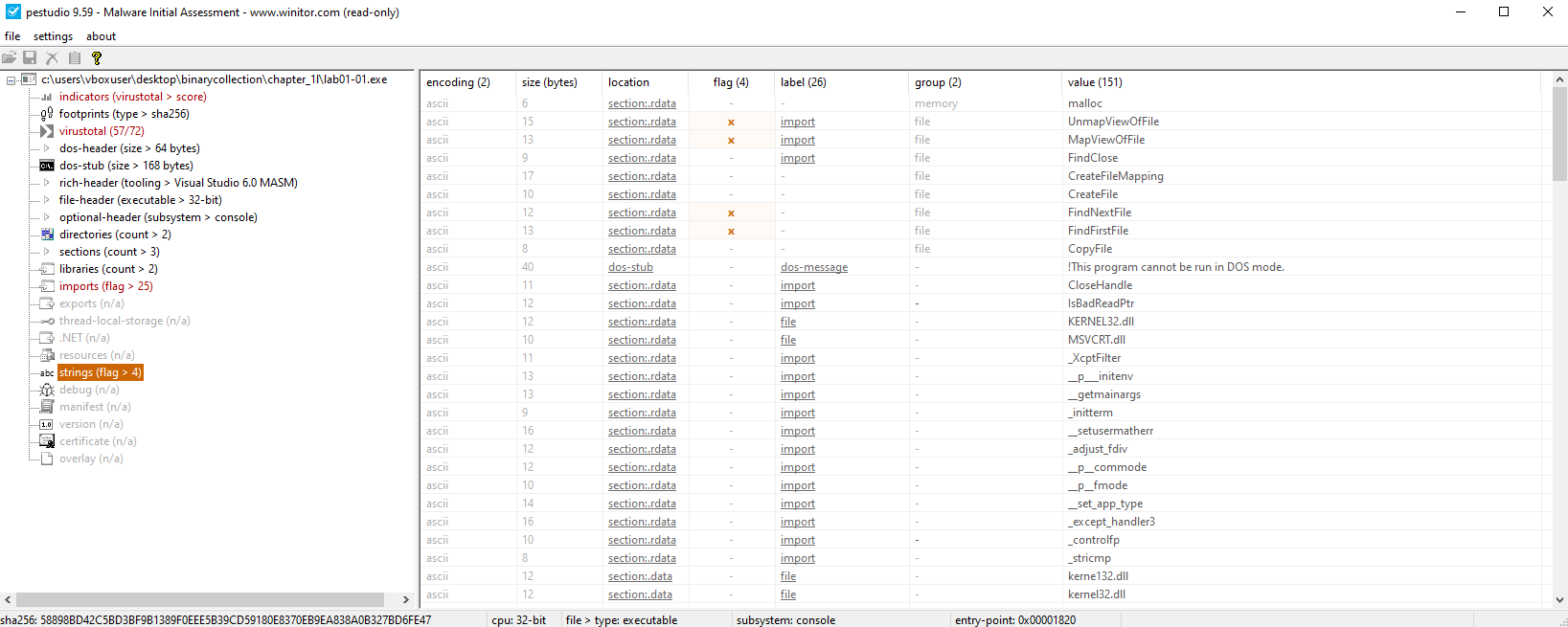

📍 Question 3: Packed or Obfuscated?

Are there any indications that either file is packed or obfuscated?

🟩 Lab01-01.exe

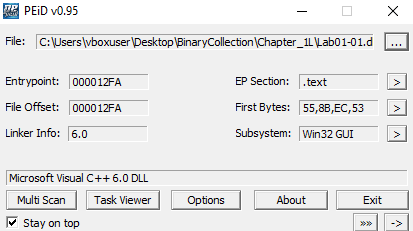

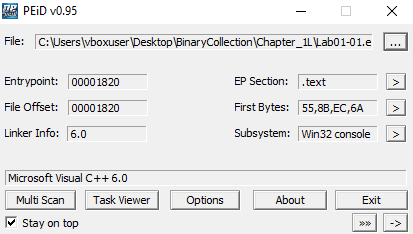

  • PEiD identifies compiler as Microsoft Visual C++ 6.0
  • Strings are clearly visible
  • Normal entropy values

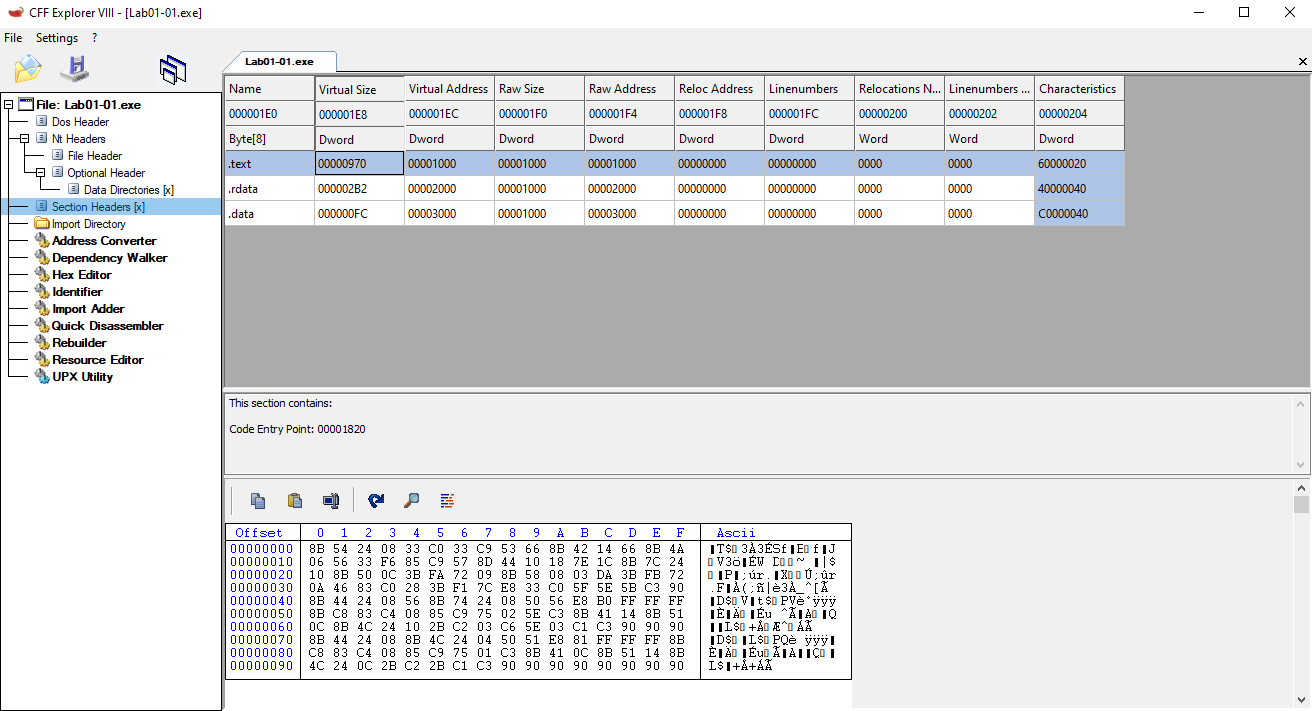

  • Standard section names like .text, .data, .rdata
  • Virtual size ≈ Raw size

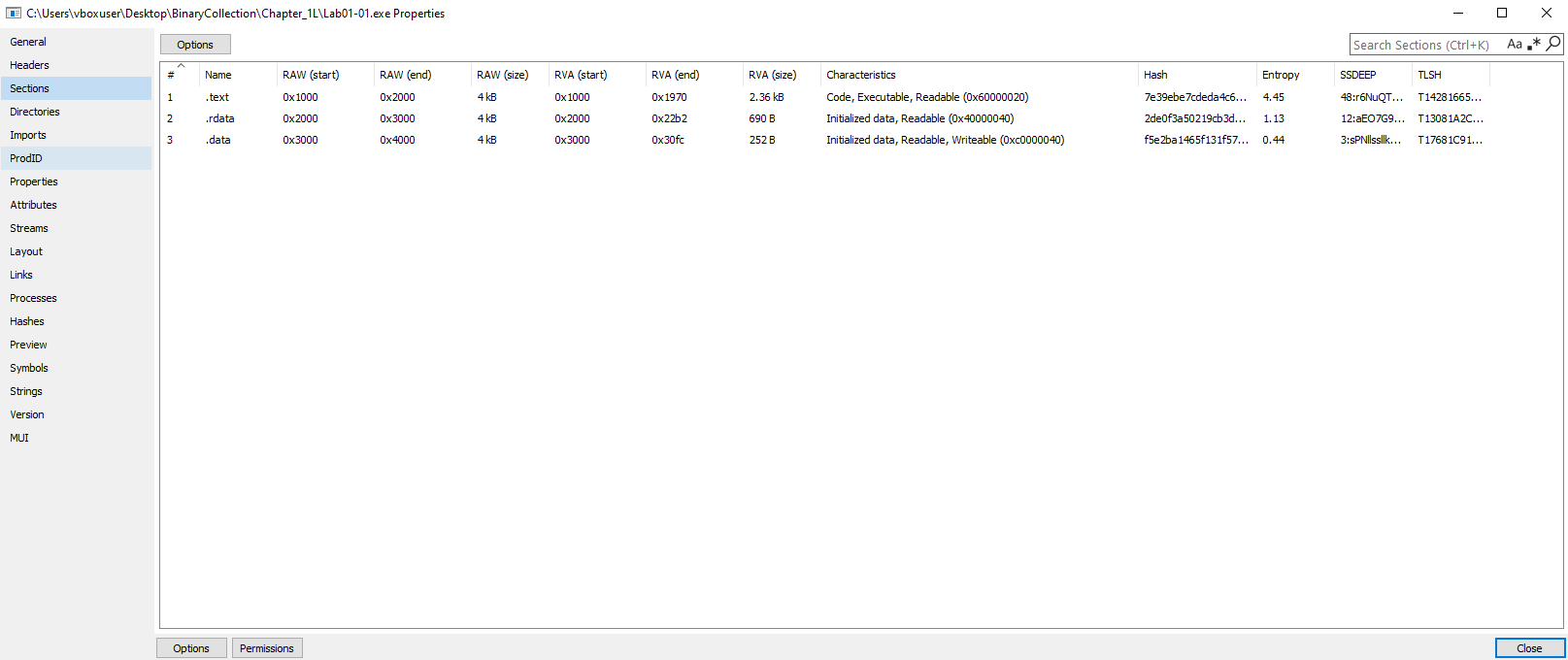

q3-exe q3-exe q3-exe q3-exe

🟨 Lab01-01.dll

Same characteristics as above:

q3-dll q3-dll q3-dll q3-dll

Conclusion: There is no indication that these files are packed or obfuscated.

📍 Question 4: Suspicious Imports

Do any imports hint at what this malware does?

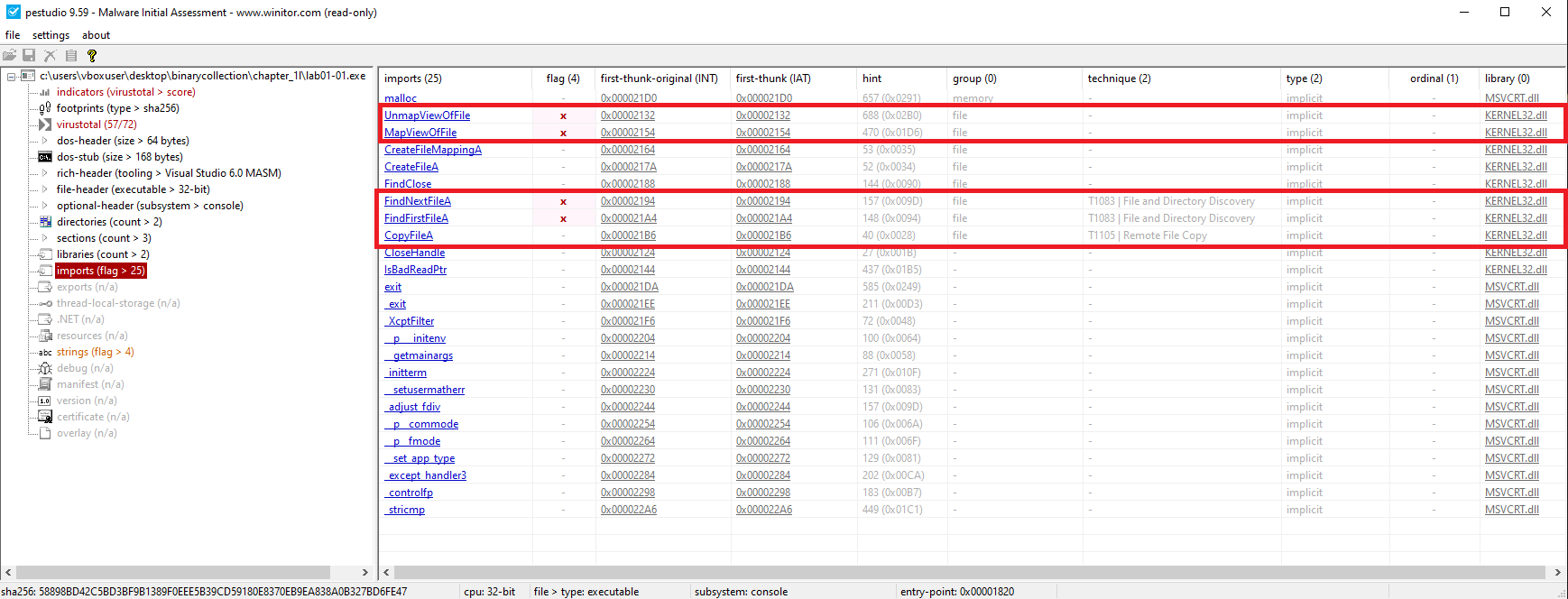

🟩 Lab01-01.exe

q4-exe

Key Imports (KERNEL32.DLL):

  • CopyFileA
  • FindFirstFileA()
  • FindNextFileA()

Indicates file enumeration and manipulation functionality.

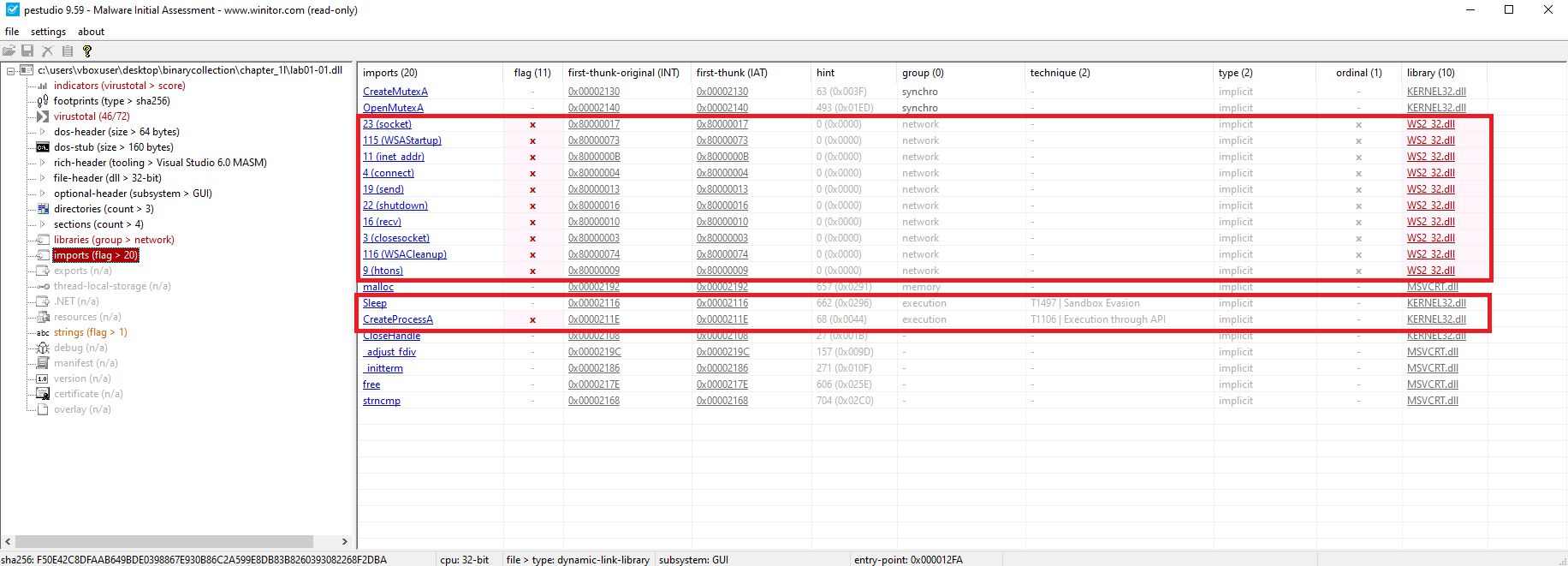

🟨 Lab01-01.dll

q4-dll

Key Imports (KERNEL32.DLL):

  • CreateMutexA() – ensures single instance
  • CreateProcessA() – spawns new processes
  • Sleep() – possible anti-analysis

Key Imports (WS2_32.DLL):

  • WSAStartup(), socket(), connect() – network communication (C2)

📍 Question 5: Host-Based Indicators

Are there any files or artifacts to look for on infected systems?

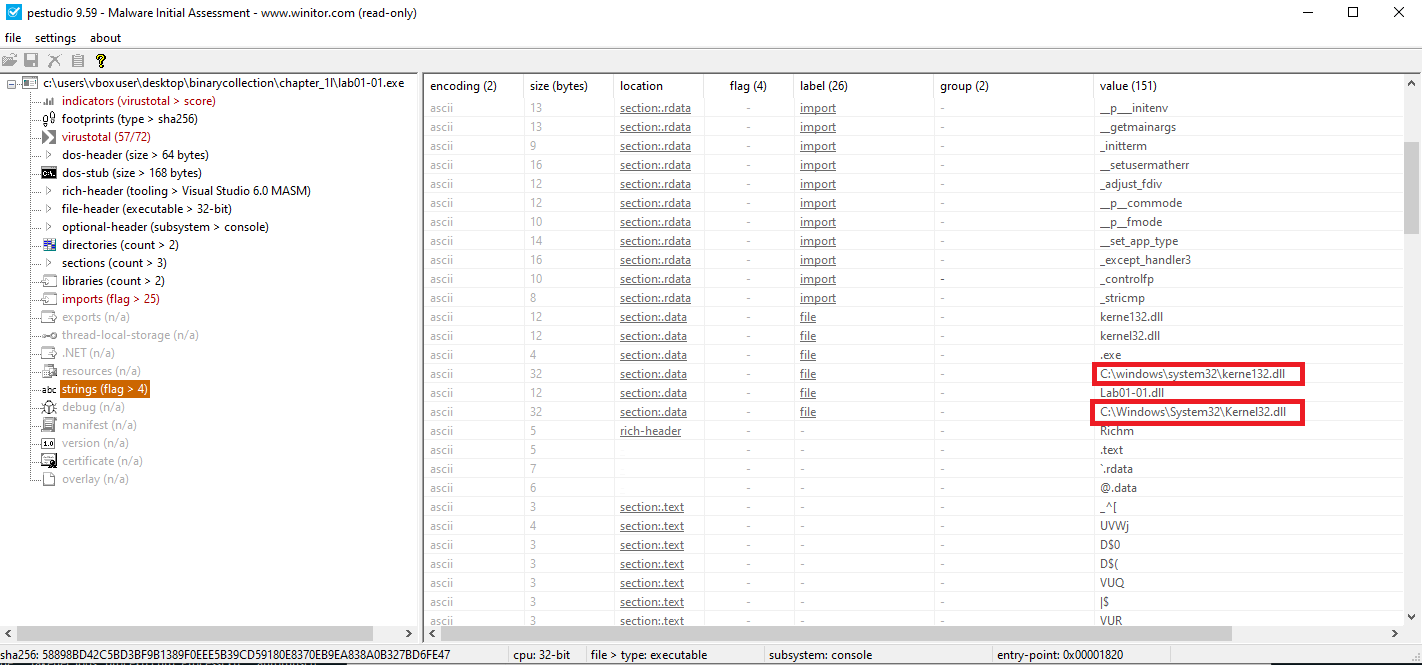

🟩 Lab01-01.exe

q5-exe

Possible copied path: C:\windows\system32\kerne132.dll

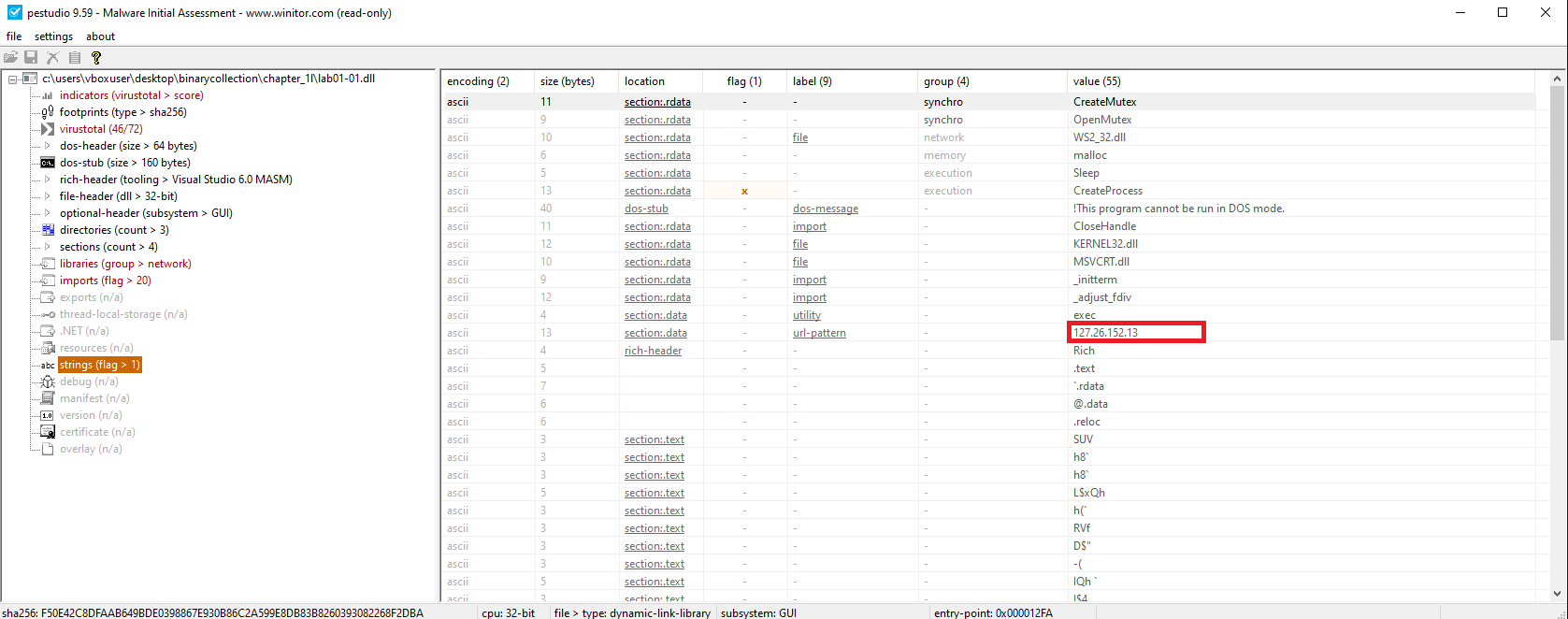

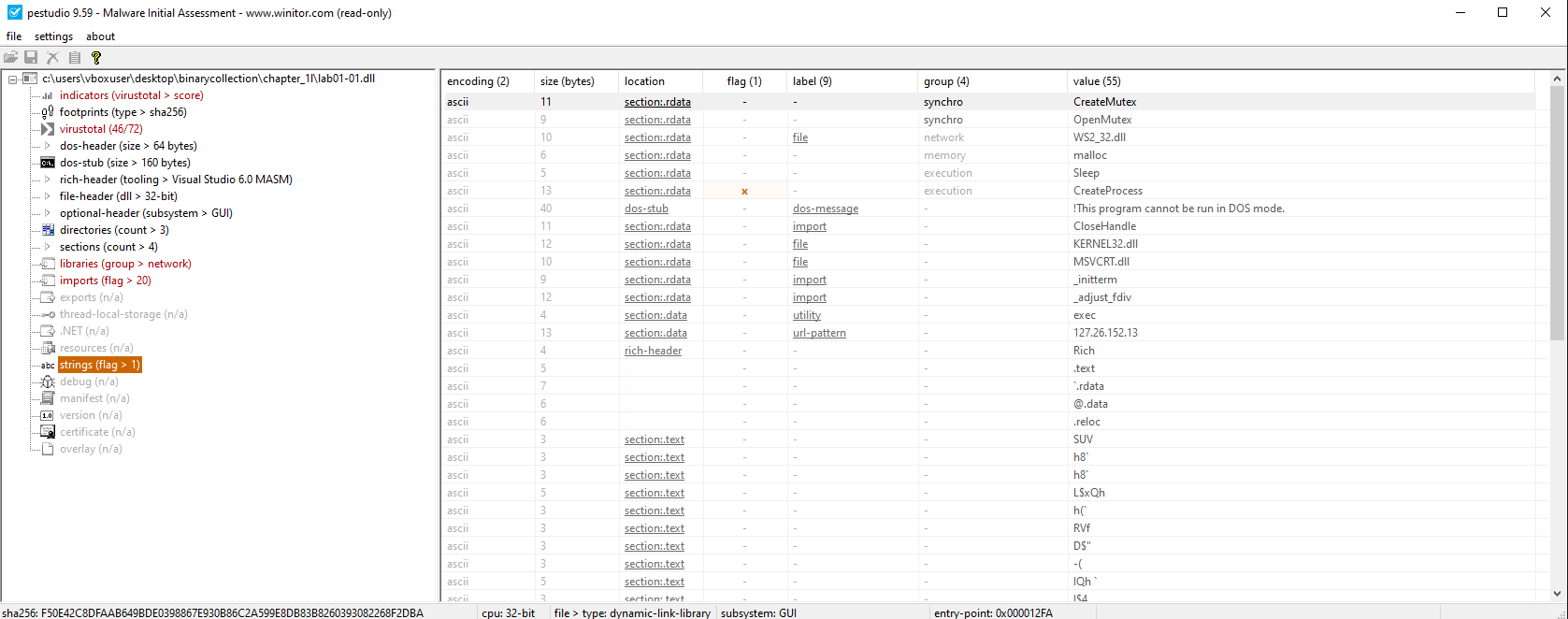

🟨 Lab01-01.dll

q5-dll

Hardcoded IP address: 127.26.152.13

📍 Question 6: Network-Based Indicators

What network-based indicators could be used to detect this malware?

🟩 Lab01-01.exe

No observed network indicators

🟨 Lab01-01.dll

q6-dll

Connects to: 127.26.152.13

📍 Question 7: Purpose of the Files

What is the suspected purpose of these files?

🟩 Lab01-01.exe

Its purpose is to deploy and execute the malicious DLL on the system, potentially copying it to the System32 directory for persistence.

🟨 Lab01-01.dll

Its purpose is to function as a backdoor or Remote Access Trojan (RAT) — enabling file system access and communication with a C2 server.

Lab 1-2

📝 Summary

In this lab, we analyze Lab01-02.exe using static analysis techniques. Our goal is to identify suspicious characteristics, understand the program’s functionality, and extract any host-based or network-based indicators of compromise (IOCs).

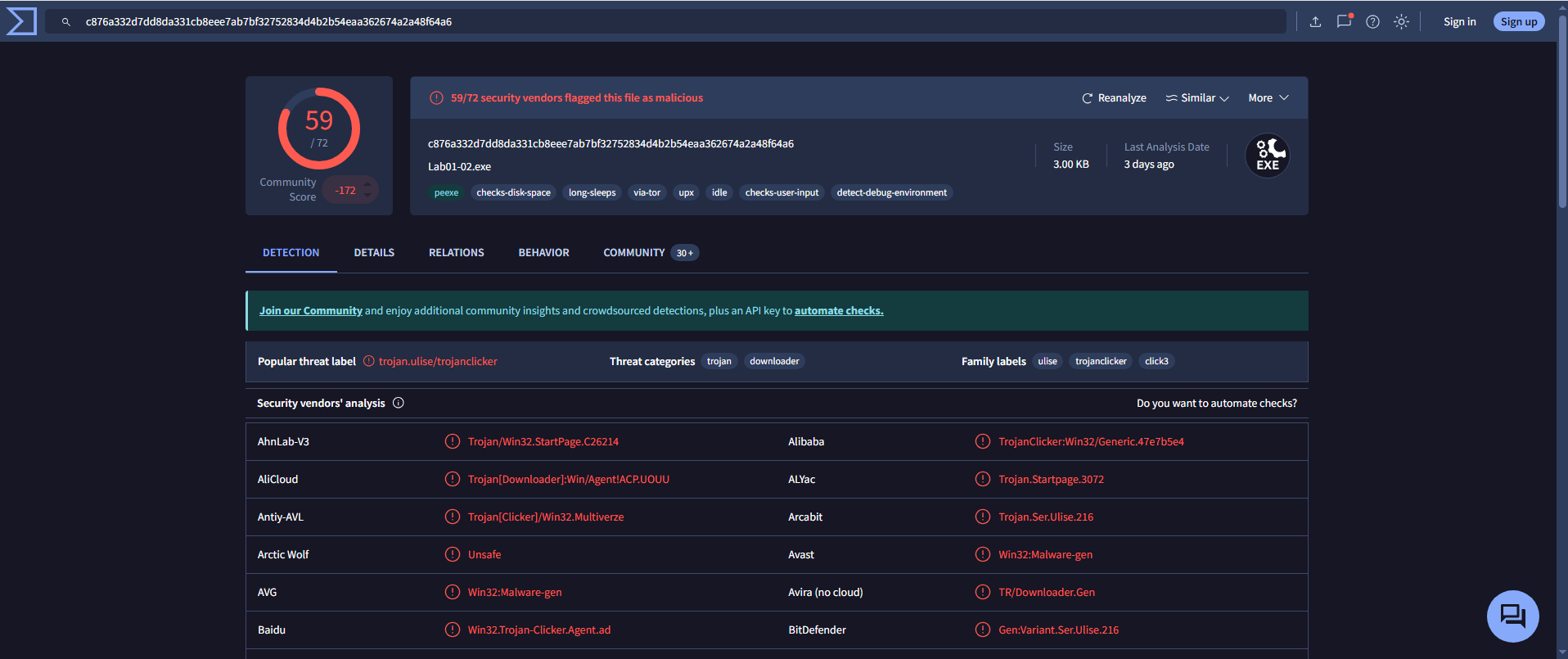

📍 Question 1: VirusTotal Detections

🟥 Lab01-02.exe

Does Lab01-02.exe match any known antivirus signatures?

q1

  • Detection Ratio: 59 / 72
  • Common AV Detections:
    • Avast: Win32:Malware-gen
    • AVG: Win32:Malware-gen

📍 Question 2: Packed or Obfuscated?

🟥 Lab01-02.exe

Are there any indications that this file is packed or obfuscated? If so, what are these indicators? If the file is packed, unpack it if possible.

q2-1

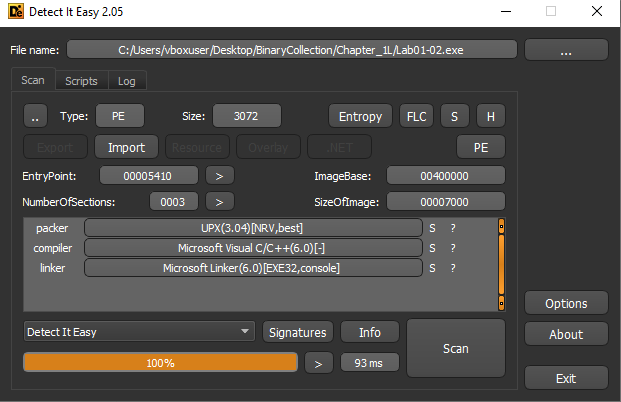

  • Packing Detected:
    Using Detect It Easy, the file is identified as packed with UPX (Ultimate Packer for eXecutables).

q2-2

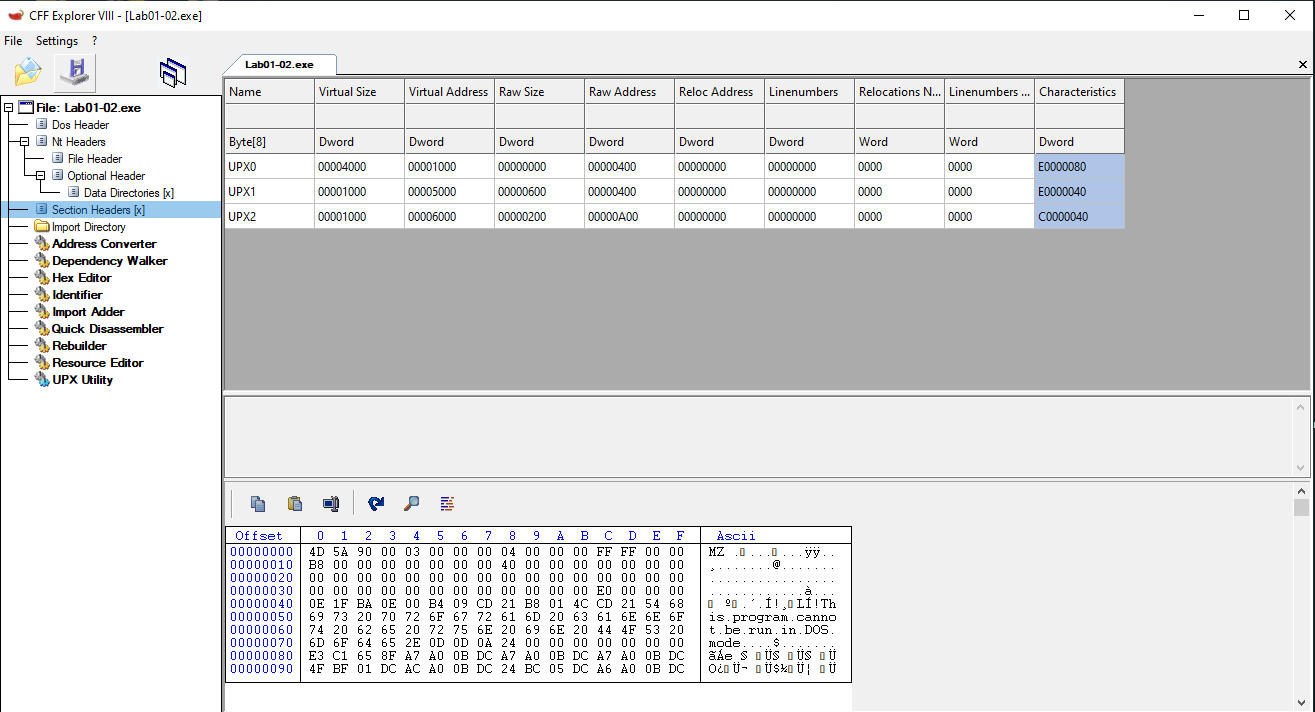

  • Supporting Indicators:
    • Sections named UPX0 and UPX1
    • A large difference between Virtual Size and Raw Size
    • Very limited imported functions (typical of UPX-packed binaries)
    • No visible readable strings in the initial state

q2-3

1
2

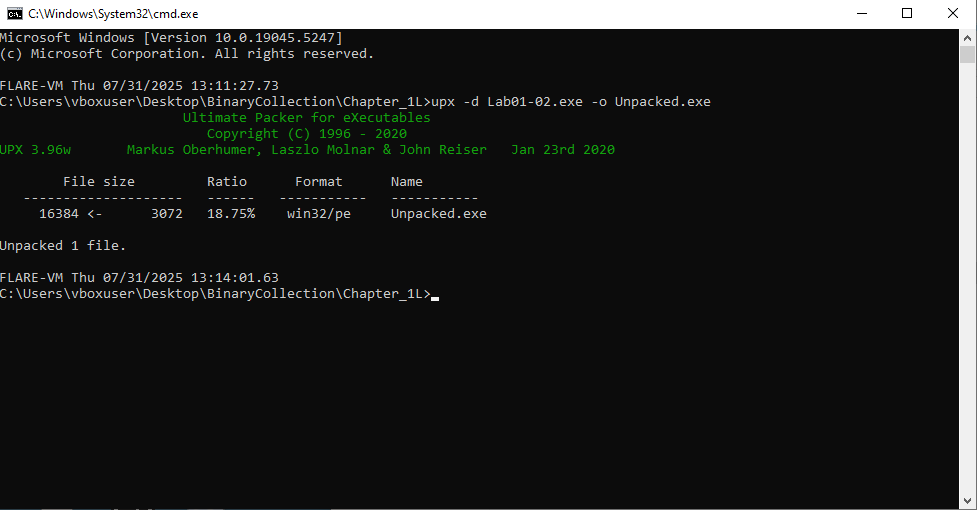

# Unpack Lab with UPX
upx -d Lab01-02.exe -o Unpacked.exe

📍 Question 3: Suspicious Imports

🟥 Lab01-02.exe

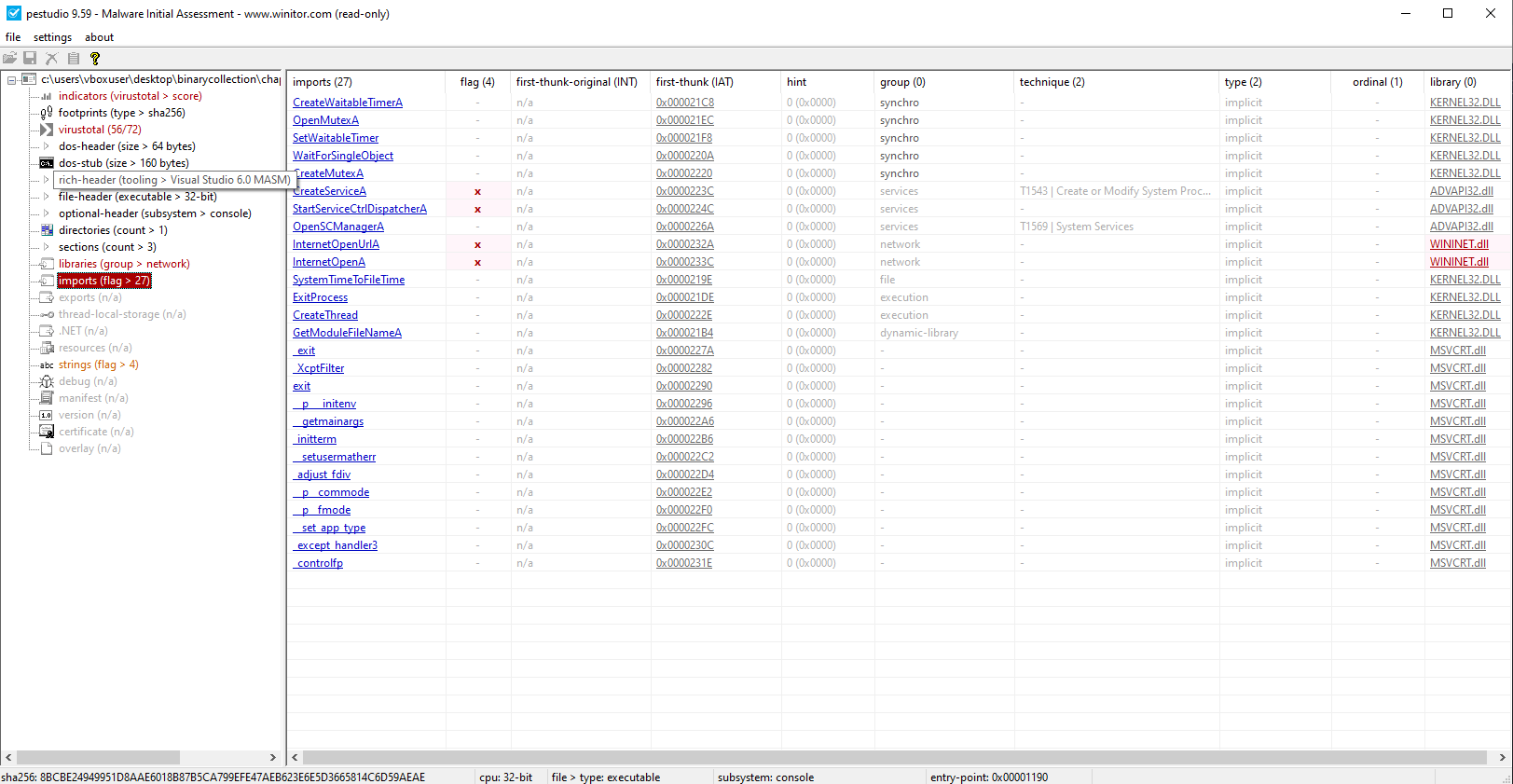

Do any imports hint at this program’s functionality? If so, which imports are they and what do they tell you? q3

Key Imports (WININET.DLL):

  • InternetOpen()
  • InternetOpenUrl()

These functions suggest the program may perform network communications, such as retrieving data from the internet, downloading additional payloads, or connecting to a command-and-control (C2) server.

Key Imports (ADVAPI32.DLL):

  • OpenSCManager()
  • CreateService()
  • StartServiceCtrlDispatcher()

These indicate functionality to create and manage Windows services, a common persistence mechanism that allows the malware to automatically run at system startup under elevated privileges.

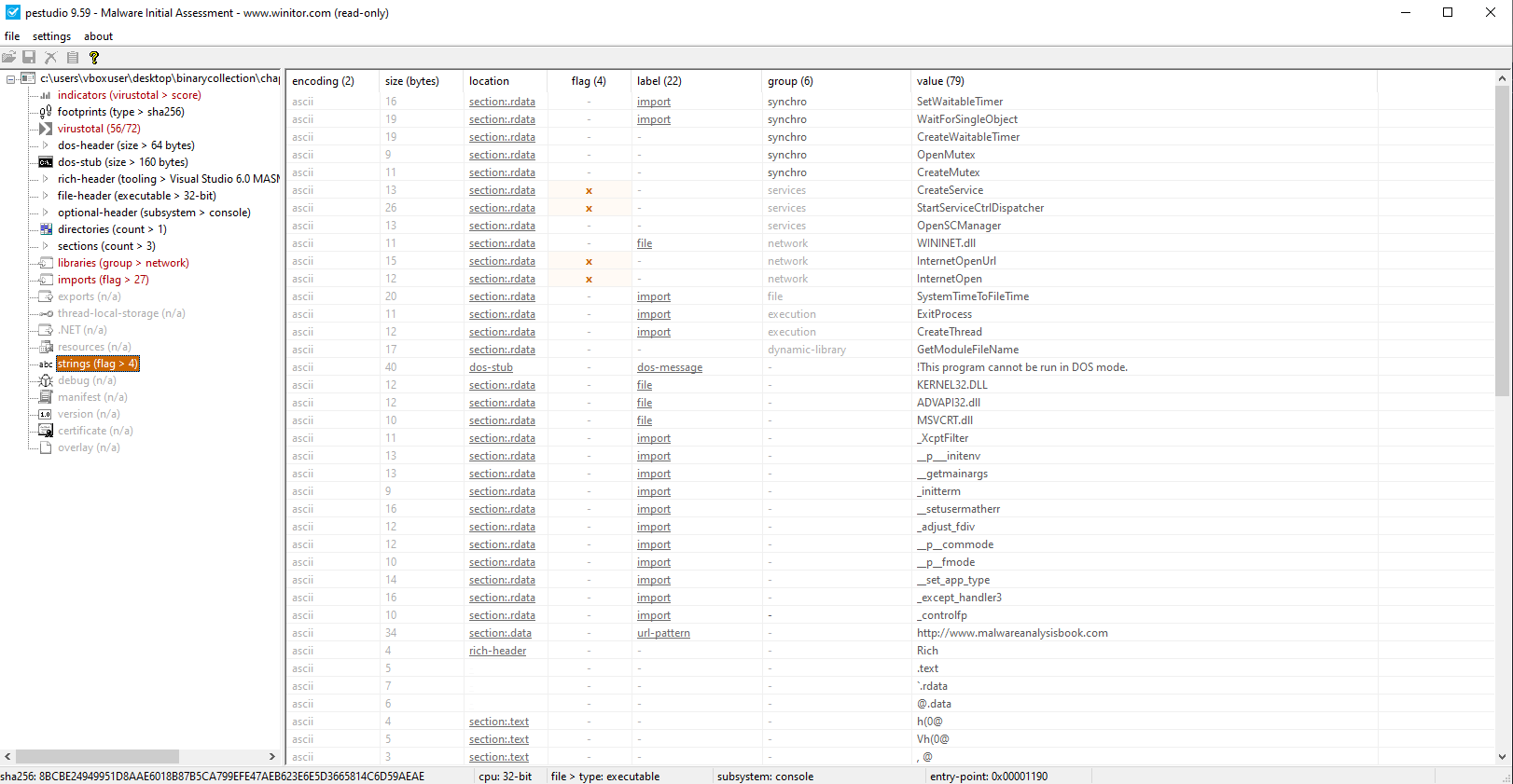

📍 Question 4: Network-Based Indicators

🟥 Lab01-02.exe

What host- or network-based indicators could be used to identify this malware on infected machines? q3

Connects to: http://www.malwareanalysisbook.com

Lab 1-3

📝 Summary

In this lab, we analyze Lab01-03.exe using static analysis techniques. Our goal is to identify suspicious characteristics, understand the program’s functionality, and extract any host-based or network-based indicators of compromise (IOCs).

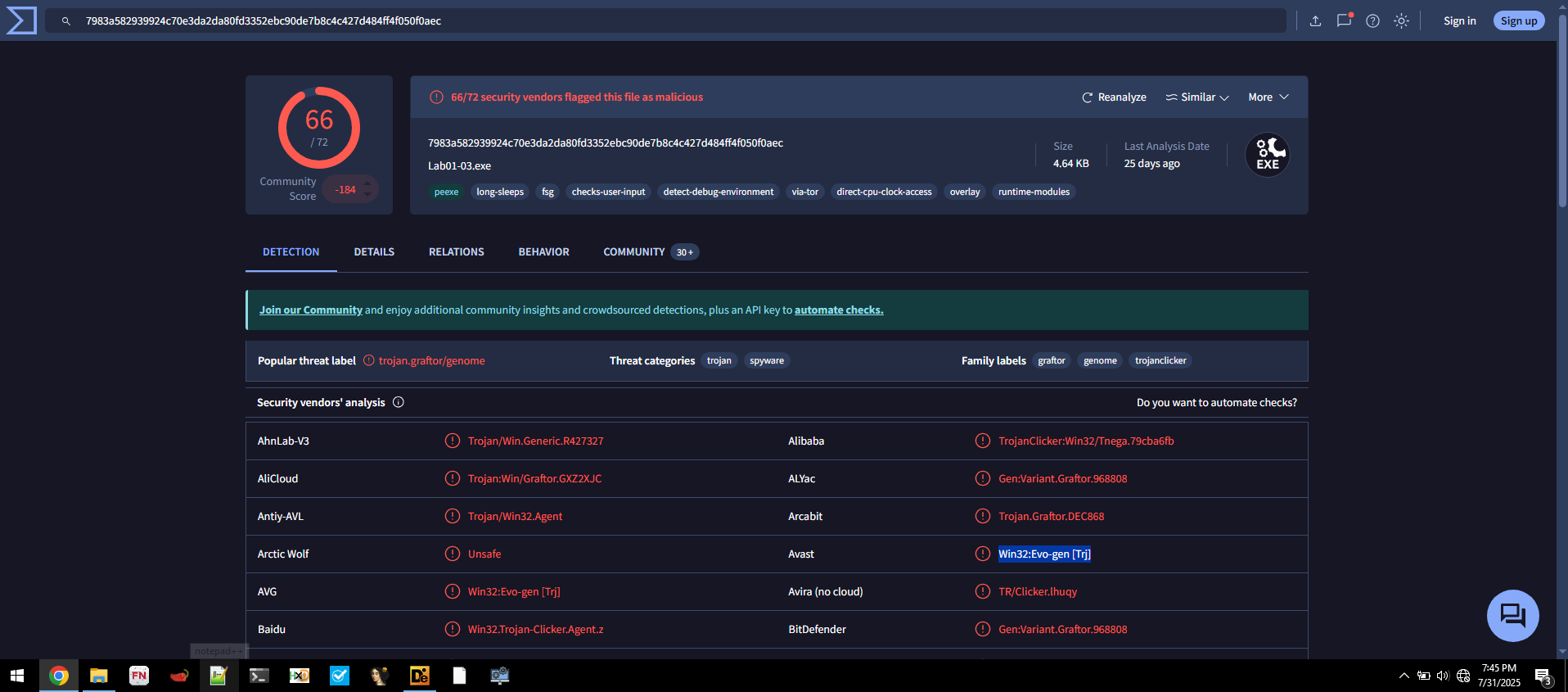

📍 Question 1: VirusTotal Detections

🟦 Lab01-03.exe

Does Lab01-03.exe match any known antivirus signatures?

q1

  • Detection Ratio: 66 / 72
  • Common AV Detections:
    • Avast: Win32:Evo-gen [Trj]
    • AVG: Win32:Evo-gen [Trj]

📍 Question 2: Packed or Obfuscated?

🟦 Lab01-03.exe

Are there any indications that this file is packed or obfuscated? If so, what are these indicators? If the file is packed, unpack it if possible.

q2-1

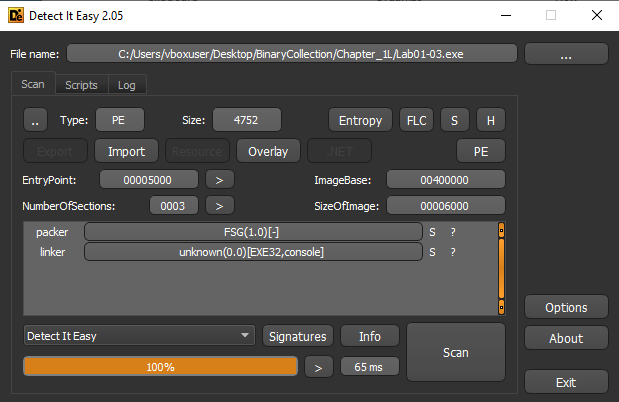

  • Packing Detected:
    Using Detect It Easy, the file is identified as packed with FSG (Fast Small Good) packer.

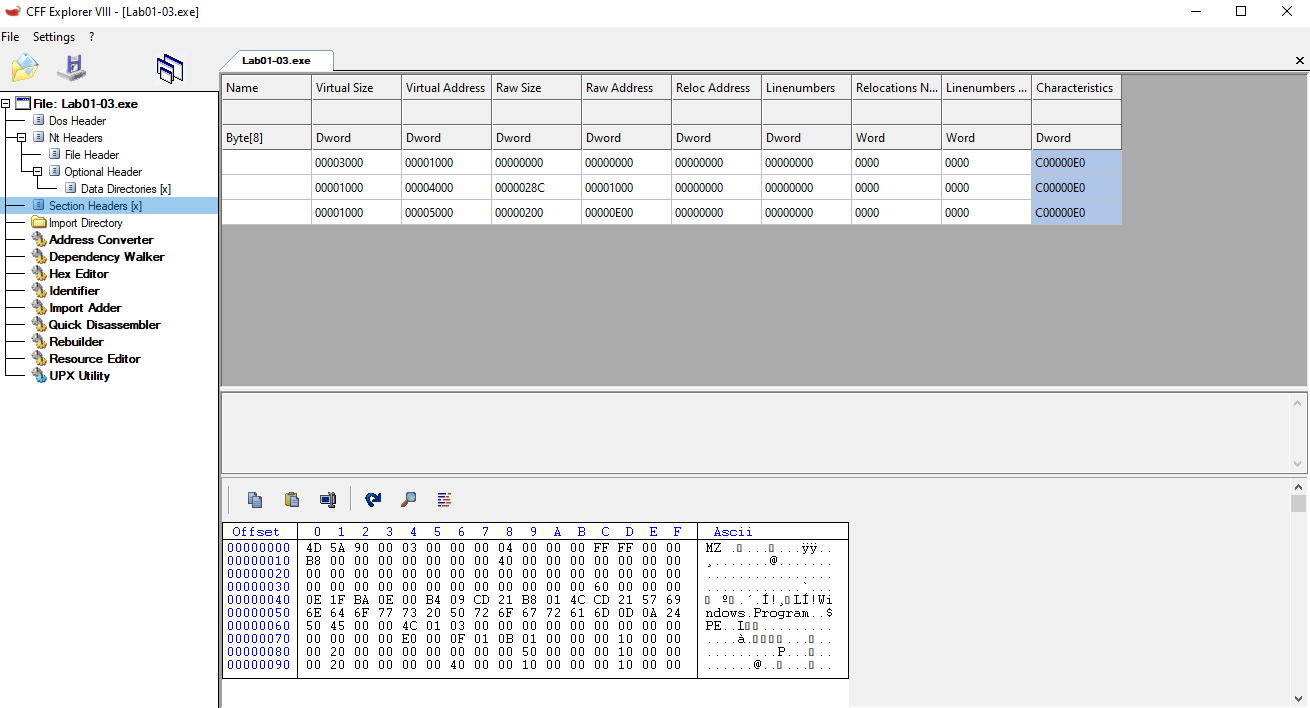

q2-2

  • Supporting Indicators:
    • Sections unnamed
    • A large difference between Virtual Size and Raw Size
    • Very limited imported functions (typical of FSG-packed binaries)
    • No visible readable strings in the initial state

we can’t unpack this file

📍 Question 3: Suspicious Imports

🟦 Lab01-03.exe

Do any imports hint at this program’s functionality? If so, which imports are they and what do they tell you?

⚠️ Note: To fully analyze suspicious imports, the file must be unpacked.
With the techniques learned so far, we are unable to unpack FSG.

📍 Question 4: Network-Based Indicators

🟦 Lab01-03.exe

What host- or network-based indicators could be used to identify this malware on infected machines?

Lab 1-4

📝 Summary

In this lab, we analyze Lab01-04.exe using static analysis techniques. Our goal is to determine whether the file is packed or obfuscated, identify its compilation details, and examine its imports to understand the program’s potential functionality. We also aim to extract host-based and network-based indicators of compromise (IOCs) and inspect the resource section for any hidden or embedded components.

📍 Question 1: VirusTotal Detections

🟪 Lab01-04.exe

Does Lab01-04.exe match any known antivirus signatures?

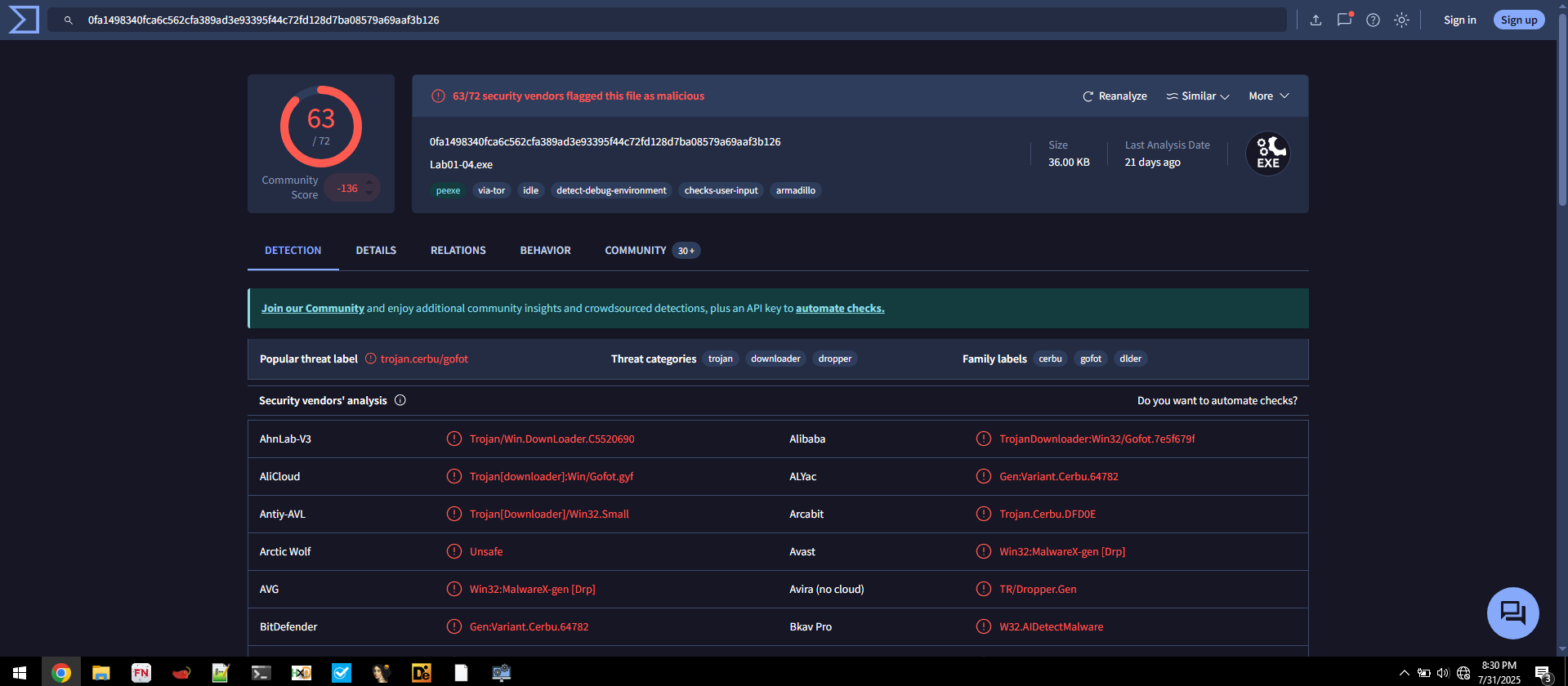

q1

  • Detection Ratio: 63 / 72
  • Common AV Detections:
    • Avira: TR/Dropper.Gen
    • AVG: Win32:MalwareX-gen [Drp]

📍 Question 2: Packed or Obfuscated?

🟪 Lab01-04.exe

Are there any indications that this file is packed or obfuscated? If so, what are these indicators? If the file is packed, unpack it if possible.

Not Packed

📍 Question 3: compilation date?

🟪 Lab01-04.exe

When was this program compiled?

q3

FileCompilation Time (UTC)
Lab01-01.exeFri Aug 30 22:26:59 2019

📍 Question 4: Suspicious Imports

🟪 Lab01-04.exe

Do any imports hint at this program’s functionality? If so, which imports are they and what do they tell you?

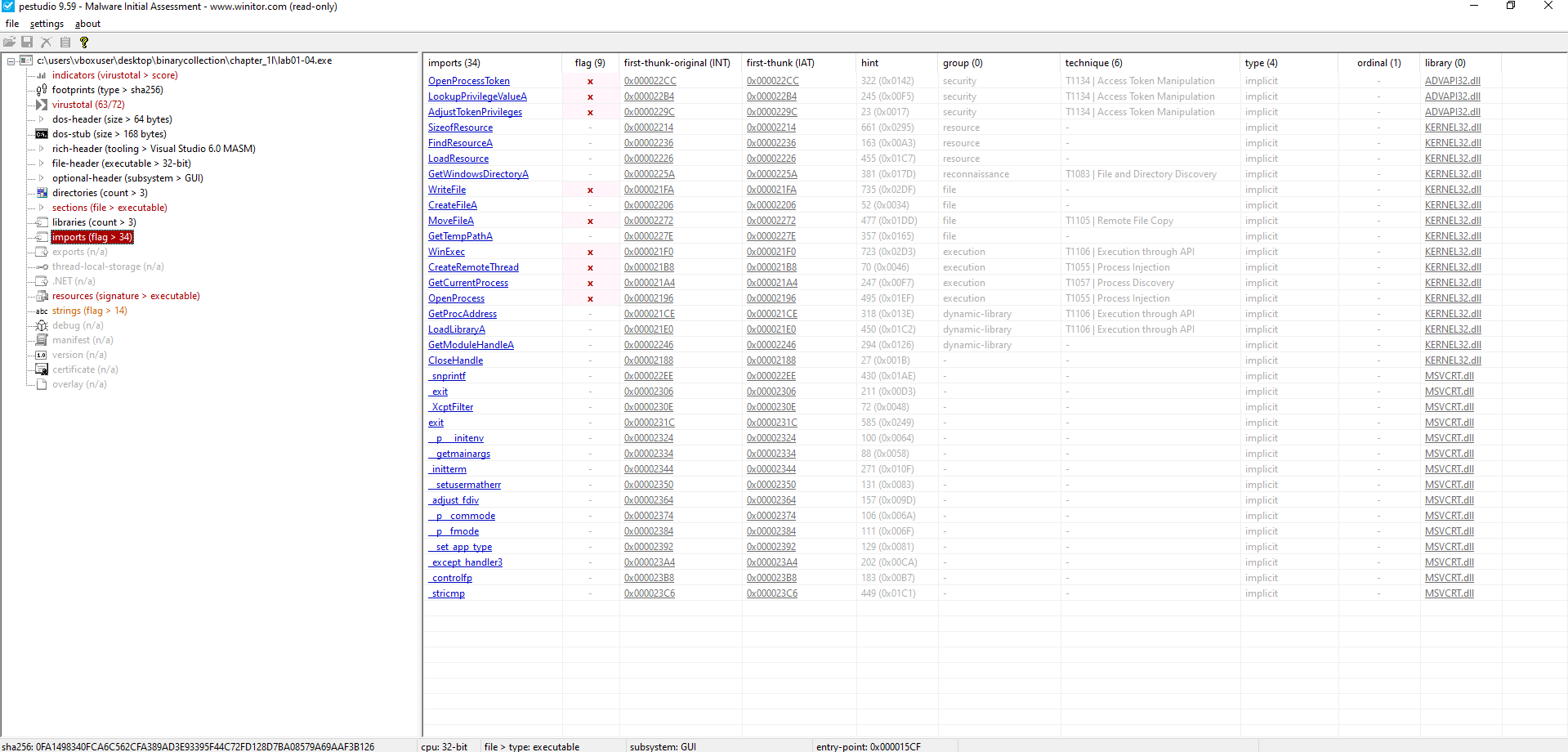

q4

Key Imports (ADVAPI32.DLL):

  • OpenProcessToken
  • LookupPrivilegeValueA
  • AdjustTokenPrivileges

Indicates access token manipulation for privilege escalation, possibly enabling SeDebugPrivilege to interact with other processes.

Key Imports (KERNEL32.DLL):

  • CreateFileA
  • WriteFile
  • MoveFileA
  • GetTempPathA

Suggests file manipulation capabilities such as creating, writing, moving files, and using temporary paths—often used for staging malicious payloads.

Key Imports (KERNEL32.DLL):

  • WinExec
  • CreateRemoteThread
  • OpenProcess

Points to possible code execution and process injection into other running processes.

Key Imports (KERNEL32.DLL):

  • LoadLibraryA
  • GetProcAddress
  • GetModuleHandleA

Enables dynamic loading and resolution of APIs or DLLs—commonly used to evade static detection and load payloads at runtime.

📍 Question 5: Network-Based Indicators

🟪 Lab01-04.exe

What host-based or network-based indicators could be used to identify this malware on infected machines?

q5

Network-Based Indicators:

  • Hardcoded URL: http://www.malwareanalysisbook.com/updater.exe

    Suggests the malware attempts to download additional payloads or check in for updates. This is a high-fidelity indicator for network detection.

  • Domain: www.malwareanalysisbook.com

Host-Based Indicators:

  • Host-based: \system32\wupdmgrd.exe \winup.exe

📍 Question 6: Resources

🟪 Lab01-04.exe

This file has one resource in the resource section. Use Resource Hacker to examine that resource, and then use it to extract the resource. What can you learn from the resource? Steps Performed:

q6

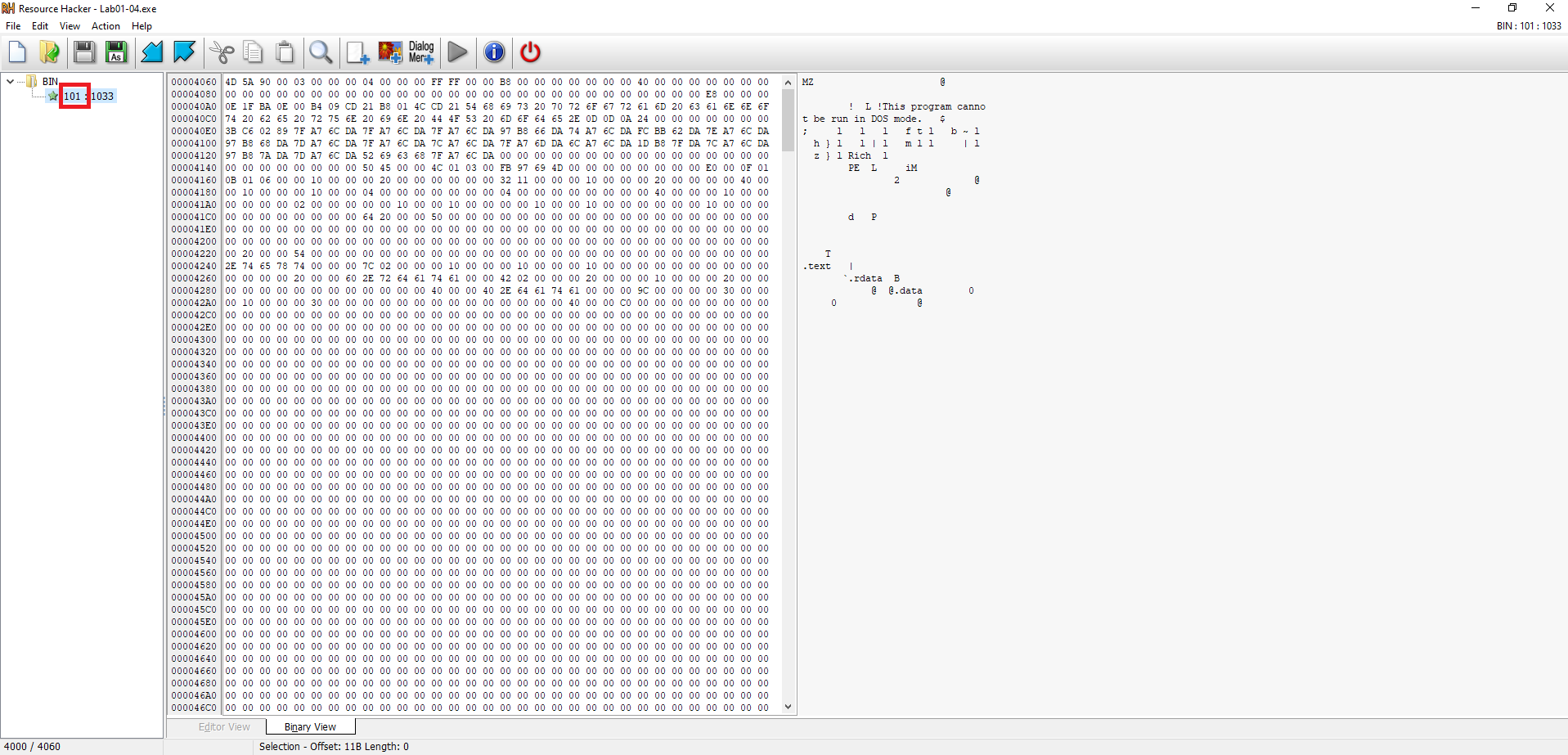

  1. Opened the sample in Resource Hacker
    • Navigated to .rsrc → RCDATA → 101 → 1033.
    • Observed that the resource’s binary data begins with 4D 5A (MZ header), confirming it is an embedded executable.
  2. Extracted the resource
    • Right-clicked 1033 → Save Resource to a bin file → saved it as bin101.bin.

q6-2

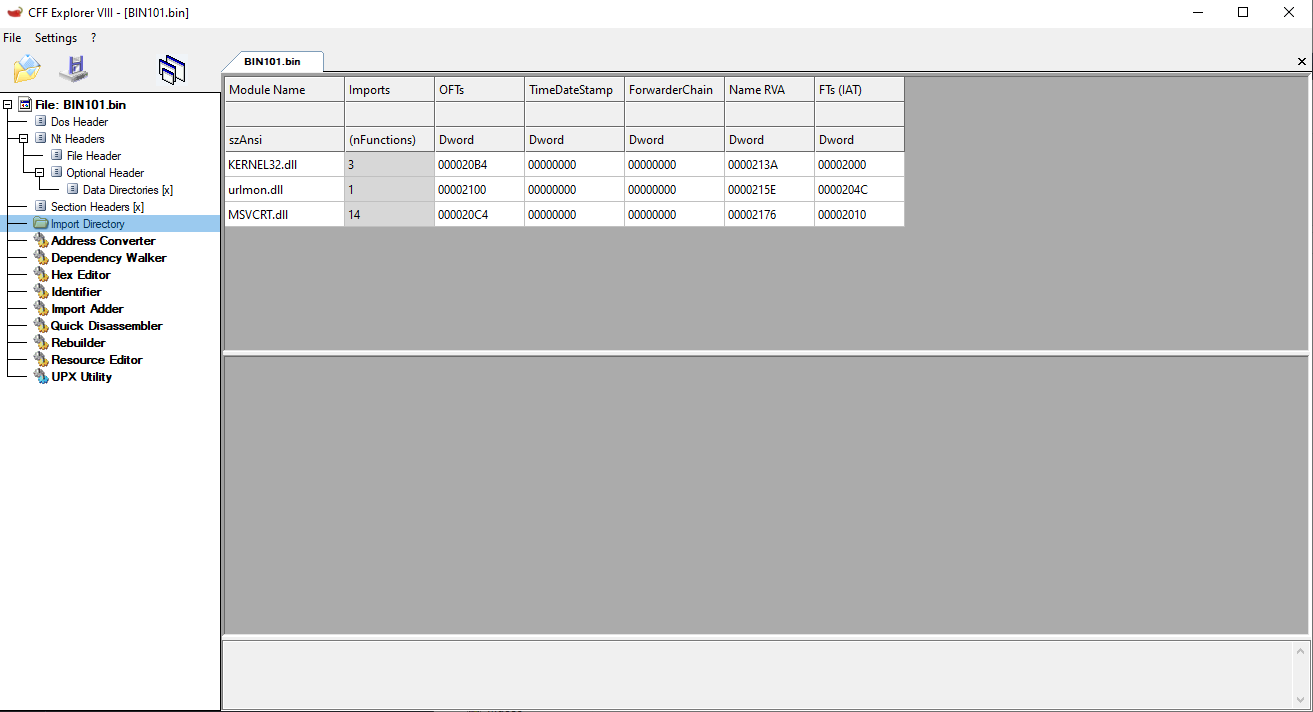

  1. Inspected the extracted file in CFF Explorer
    • Loaded bin101.bin in CFF Explorer and checked the Import Directory.
    • Found these key imports:
      • KERNEL32.DLL
      • URLMON.DLL → URLDownloadToFileA
